LLM
Updated on Apr 21, 2025

LLM VRAM Calculator for Self-Hosting in 2025

The use of LLMs has become inevitable, but relying solely on cloud-based APIs can be limiting due to cost, reliance on third parties, and potential privacy concerns. That’s where self-hosting an LLM for inference (also called on-premises LLM hosting or on-prem LLM hosting) comes in.

ToolBest For
1.
Integrations (wide compatibility)
2.
Developers (high performance)
3.
Local RAG applications
4.
Beginner-friendly experimentation
1.
Ollama logo
Ollama
Integrations (wide compatibility)
2.
vLLM logo
vLLM
Developers (high performance)
3.
AnythingLLM logo
AnythingLLM
Local RAG applications
4.
LM Studio logo
LM Studio
Beginner-friendly experimentation

LLM Compatibility Calculator

Enter your configuration details below to instantly to estimate the RAM needed based on model parameters, quantization method, and your hardware specs:

The available quantization methods and precision bits for vendors are taken from Hugging Face transformers library documentation.1

You can read more about the optimization techniques to host LLMs locally.

Top self-hosting tools analyzed

Last Updated at 04-09-2025
ToolEase of UsePerformanceGithub Stars

Ollama

Medium

Medium

136k

vLLM

Low

High

44k

AnythingLLM

High

Medium

43k

LM Studio

High

Low

3k

Ollama

Ollama is an open-source tool that simplifies running LLMs locally on macOS, Linux, and Windows. It bundles models and configurations, making setup straightforward for various popular LLMs. Ollama prioritizes ease of use and privacy via offline operation and supports integrations with developer tools like LangChain and user-friendly interfaces like Open WebUI, which provides a chat-based graphical experience for interacting with the locally hosted models.

It allows users and developers to easily run and interact with LLMs on their personal machines, including multimodal models, making it ideal for local development and privacy-conscious usage.

vLLM

vLLM is a high-performance engine designed for fast and memory-efficient large language model serving. It uses techniques like PagedAttention and continuous batching to maximize throughput and reduce memory requirements during inference.

It supports distributed execution and various hardware (NVIDIA, AMD, Intel) and offers an OpenAI-compatible API for integration. vLLM targets developers and researchers focused on optimizing LLM deployment in production environments. It excels at scalable, high-speed model serving.

AnythingLLM

AnythingLLM is an open-source desktop tool for running large language models (LLMs) on macOS, Windows, and Linux. It enables users to apply RAG to process documents like PDFs, CSVs, and codebases, retrieving relevant information for chat-based interactions without coding.

It operates offline by default for privacy and integrates RAG to enhance responses using user-provided data. AnythingLLM suits developers and beginners exploring document-driven LLM use cases, with additional support for AI agents and customization through a community hub.

LM Studio

LM Studio is a beginner-friendly desktop application for discovering, downloading, and experimenting with large language models locally across macOS, Windows, and Linux. It features an intuitive graphical interface for managing models from sources like Hugging Face and interacting via a chat UI or a local server.

LM Studio simplifies experimentation with features like offline RAG and leverages efficient backends like llama.cpp and MLX. It caters primarily to beginners and developers wanting an easy-to-use environment for exploring local LLMs.

Open-source large language models

Last Updated at 04-08-2025
ProviderModel

Alibaba

Qwen2.5-Omni-7B

Alibaba

Qwen2.5-VL-72B-Instruct

DeepSeek

DeepSeek-R1

DeepSeek

DeepSeek-V3-0324

Google

Gemma-3-27b-it

Google

Gemma-2-27b-it

Meta

Llama-4-Maverick-17B-128E-Original

Meta

Llama-4-Scout-17B-16E-Original

Meta

Llama-3.3-70B-Instruct

Mistral

Mistral-Small-3.1-24B-Instruct-2503

Open-source LLMs are models whose architecture and model files (containing weights, often with billions of more parameters) are publicly available, allowing anyone to download, modify, and use them.

Platforms like Hugging Face serve as central repositories, making it easy to access these models for tasks like building a self-hosted LLM solution. Often packaged within a container image for easier deployment, these models enable users to run model inference directly on their own hardware, offering greater control and flexibility compared to closed-source alternatives.

Advantages of self-hosted LLMs

  • Full Control & Deeper Customization: Host models on your own hardware to gain complete command over your LLM applications, enabling deeper customization for fine-tuning beyond standard APIs.
  • Enhanced Data Security: Keep your data, especially sensitive data, secure within your own systems, significantly improving data security as information doesn’t need to leave your control.
  • Cost-Effectiveness: Achieve potential long-term cost savings by utilizing your own infrastructure and leveraging open models, avoiding recurring cloud subscription fees.
  • Flexibility with Open Models: Take advantage of a growing ecosystem of open models that can be deployed as self-hosted models without vendor lock-in.
  • User-Friendly Management: Many self-hosting offers provide tools like a web UI to simplify management and interaction with your deployed models.

Disadvantages of self-hosted LLMs

  • Significant Hardware Investment: Running self-hosted models effectively demands powerful hardware, especially systems with large amounts of expensive GPU memory, representing a major upfront cost and potential infrastructure challenge.
  • Complex LLM Deployment: Setting up open-source models requires significant technical expertise in configuration, dependency management, and troubleshooting; it’s rarely a single command process.
  • Limited Access to Proprietary Models: While you can deploy open-source models, self-hosting typically excludes access to the latest, cutting-edge proprietary models (like GPT-4.5, Grok 3, etc.), which are often only available via managed hosted LLM APIs; these other models remain inaccessible on your own system.
  • Performance Optimization Burden: Achieving better performance and acceptable response times necessitates continuous monitoring, tuning, and optimization of resource usage, a responsibility that falls entirely on the user, unlike with managed services.

Optimizing LLMs for self-hosting

Running AI models like large language models on your own hardware can be challenging due to their size and resource needs, but several techniques help manage their model weights effectively. Methods such as quantization, multi-GPU support, and off-loading improve efficiency, making it possible to host these models at home or work.

Quantization

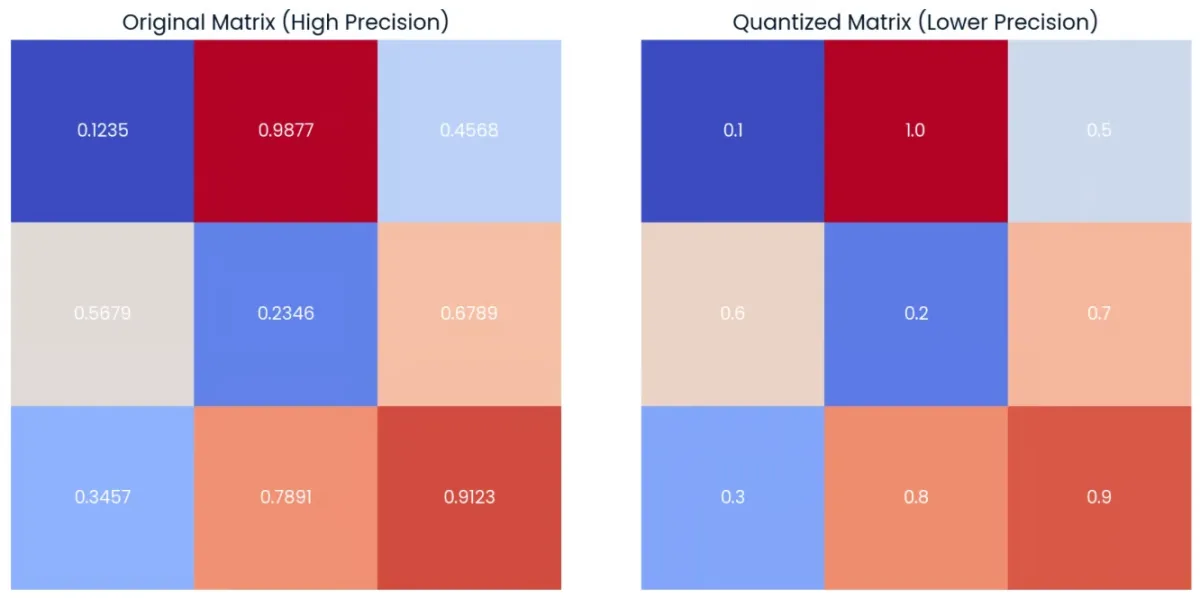

Quantization, as illustrated in the figure below, often involves reducing the precision of model weights in machine learning by converting high-precision values (like 0.9877 in the Original Matrix) to lower-precision representations (like 1.0 in the Quantized Matrix). This process decreases model size and can speed up computation, albeit with a potential loss in accuracy.

A comparison of two 3x3 matrices illustrating quantization. The left matrix, titled "Original Matrix (High Precision)", contains numbers with four decimal places (e.g., 0.1235, 0.9877, 0.5679). The right matrix, titled "Quantized Matrix (Lower Precision)", shows the corresponding numbers rounded to one decimal place (e.g., 0.1, 1.0, 0.6). Cells in both matrices are color-coded from blue (low) to red (high).
Figure 1. Example of a random matrix of weights with four-decimal precision (left) with its quantized form (right) by applying rounding to one-decimal precision.2

Multi GPU support

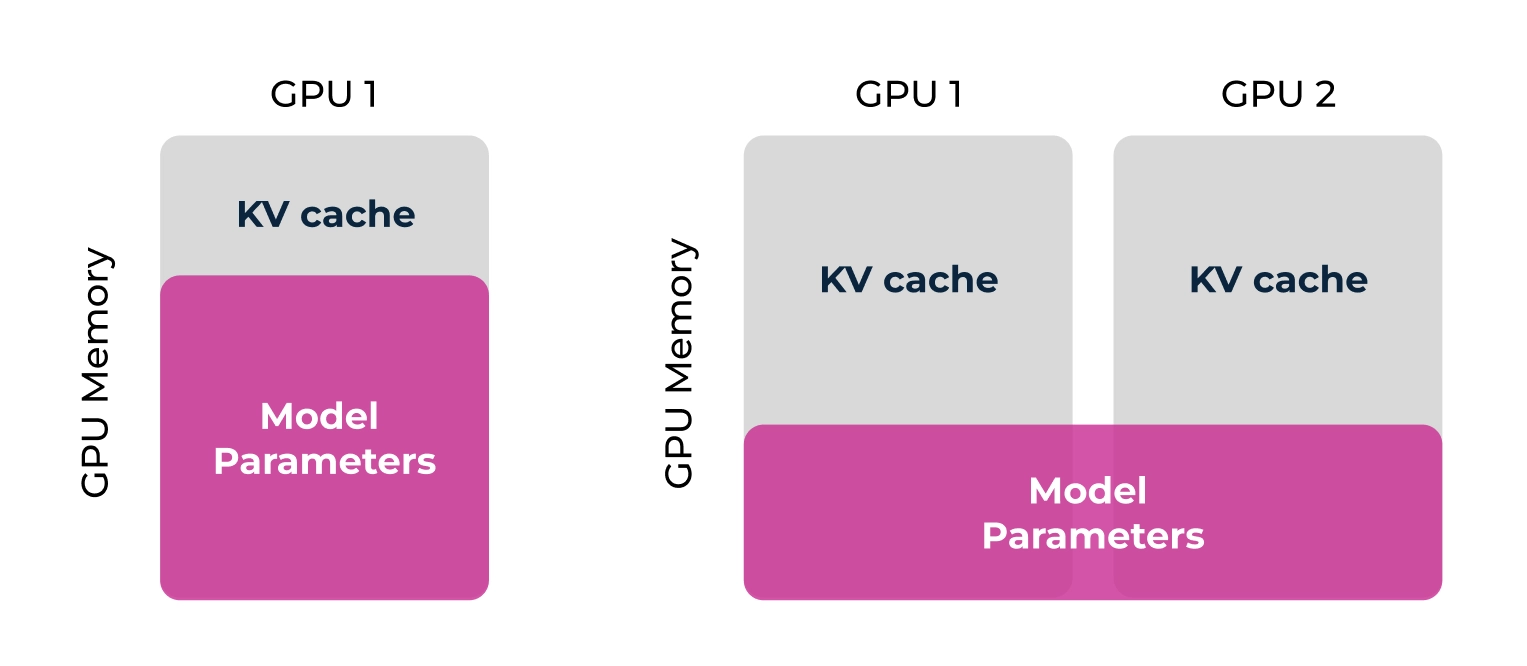

As illustrated in the figure, distributing the large ‘Model Parameters’ across multiple GPUs (GPU 1 and GPU 2) allows users to run larger, more capable models on hardware they manage, overcoming single-GPU memory limitations and making self-hosting feasible. This effectively pools resources, optimizing the use of available hardware to meet the demanding requirements of modern LLMs.

A diagram comparing GPU memory usage in two scenarios. The vertical axis represents GPU Memory. The left scenario shows one block labeled "GPU 1", containing a lower pink area labeled "Model Parameters" and an upper grey area labeled "KV cache". The right scenario shows two blocks, "GPU 1" and "GPU 2". A single wide pink block labeled "Model Parameters" spans the lower portion of both GPUs. Above this shared pink block, each GPU has its own separate grey block labeled "KV cache".
Figure 2. Comparison of GPU memory allocation for a large language model. On the left, a single GPU holds both the model parameters and the KV cache. On the right, using two GPUs, the model parameters are distributed across both GPUs, while each GPU maintains its own separate KV cache.

Off-loading

Parameter off-loading optimizes LLMs for self-hosting by addressing the limited memory available on consumer GPUs. This technique involves dynamically moving parts of the large model, such as inactive “expert” parameters in MoE models, between the fast GPU memory and slower system RAM. By doing this, offloading allows users to run large, powerful models on accessible hardware that wouldn’t otherwise have enough dedicated GPU memory, making self-hosting feasible.3

Model sharding

Sharding, as illustrated in the image below, divides the complete “Large Language Model” into several smaller, more manageable “Model pieces.” This technique allows the distribution of these pieces across multiple devices (like GPUs) or even different types of memory within a self-hosted setup. By breaking down the model, sharding overcomes the memory limitations of individual hardware components, making it possible to run large models on personally managed infrastructure.

A diagram illustrating model sharding. On the left, a large rectangle labeled "Large Language Model," segmented by internal dotted lines, represents the original model. Lines extend from these segments to five smaller, stacked rectangles on the right, collectively labeled "Sharded LLM" and indicated as "Model pieces" by a vertical arrow. This visually represents breaking a large model into smaller parts.
Figure 3. The diagram shows how a complete LLM can be divided into smaller segments or “Model pieces” to create a sharded version, facilitating distribution across multiple hardware resources or memory tiers for efficient processing and management.4

FAQ about self-hosted LLMs

What is a self-hosted LLM?

A self-hosted LLM is a large language model used for LLM applications that runs entirely on hardware you control (like your personal computer or private server) rather than relying on a third-party cloud service.

What are the techniques for running LLMs locally?

Techniques include using frameworks like llama.cpp, libraries like Hugging Face transformers, user-friendly apps (Ollama, LM Studio), model quantization (e.g., GGUF, GPTQ) to reduce resource needs, model parallelism to distribute large models across multiple devices, and optimized inference engines (like vLLM).

Is it possible to process multiple requests on a self-hosted LLM?

Yes, tools like vLLM, Ollama, and LM Studio can run local servers capable of handling multiple (often concurrent) requests. This is similar to how cloud APIs operate, often using batching for efficiency.

Do I need to request access for self-hosted LLMs?

No, you don’t need external access permission or API keys from a provider for self-hosted llm. Since you host it yourself, you have direct access; you might optionally set up your own authentication for your local server if needed.
