Machine vision is the eye of the industrial automation. Using cameras and sensors and computing power, machine vision techniques attempt to understand images and enable machines (robots or other industrial tools) to complete industrial tasks such as manufacturing and quality verification.

The working principle of machine vision consists of three different steps : capture, process and action. Machine vision is a key element of the industry 4.0. It helps industrial automation systems in numerous ways such as increasing efficiency by improving inventory and detecting faulty products and improving manufacturing quality.

What is Machine Vision?

Machine vision techniques enable machines to use vision in industrial tasks. Wikipedia’s longer definition is:

Machine vision (MV) is the technology and methods used to provide imaging-based automatic inspection and analysis for such applications as automatic inspection, process control, and robot guidance, usually in industry.

How is machine vision different than computer vision?

Machine vision is a tool used in the industrial field for autonomous control of machines. It includes computer vision which is the technology that enables images to be processed and understood. For example, let’s consider an industrial robot which is specifically equipped and programmed to detect faulty products on the production line. While computer vision is the field that works on the algorithms that identify the visual defect, machine vision system includes the entire system that both identifies defects and removes them from the production line.

There are three main steps to learn how machine vision works.

Source: Devisionx

Image Capturing:

Vision sensors, digital cameras, ultraviolet or infrared cameras are used to capture the image. This is a snapshot through one or more instances. The hardware captures the image and transforms it into digital information.

Image Processing:

The digital data coming from the hardware can be analyzed by using image processing algorithms. There are three main steps in image processing in machine vision:

  • Pre-processing: Pre-processing consists of noise removal and contrast enhancing.
  • Image recognition:
    • Segmentation: A threshold is applied and the edges of the image is determined in this process.
    • Feature Extraction: Size, color, length, shape or combination of these features can be extracted in this process.

Feel free to read our comprehensive image recognition article to learn more.

System Action:

Based on the information extracted in the previous step, machine is instructed to do the necessary action.

Why is Machine Vision important now?

As we explained in our image recognition article, reducing cost of cameras and improvement in image recognition accuracy in the past decade, resulted in more accurate and cheaper machine vision systems.

Industrial companies are aiming to achieve increased automation and efficiency with their industry 4.0 initiatives that aim to improve industrial processes with computing technology. Since the rise of deep learning, machine vision products can deliver on this promise and as a result industrial companies have been investing into these systems.

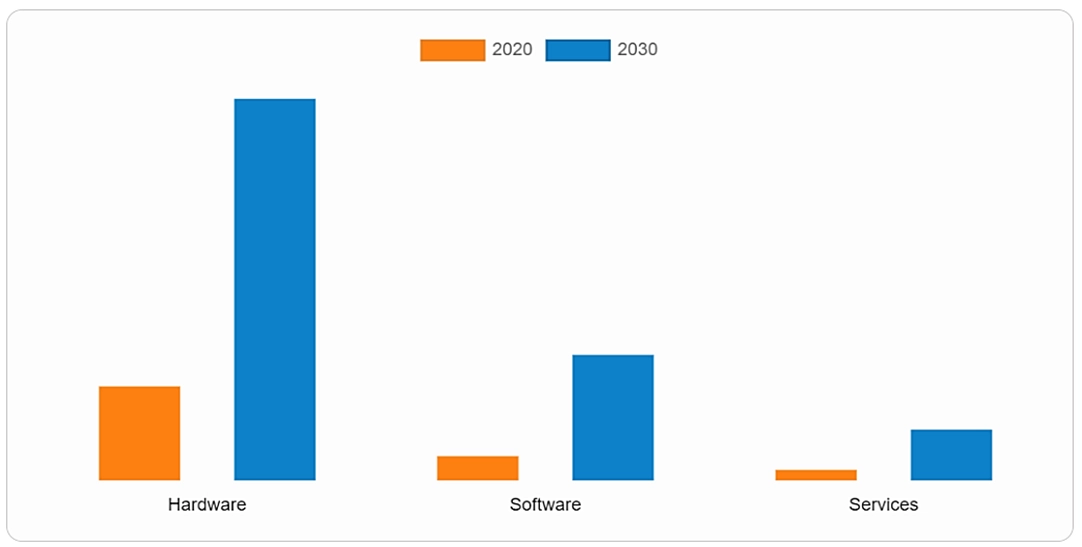

As a result, the market grew rapidly and is expected to keep on growing strongly according to multiple sources.

  • Bloomberg estimates machine vision market size to be $18.24 billion by 2025.
  • Mckinsey expects Industry 4.0 to deliver between $1.2 trillion and $3.7 trillion in value potential reach in 2025, globally. It is also expected industry 4.0 to create value equivalent to efficiency improvements of 15-20%.

What are the advantages of machine vision?

These systems allow manufacturers to work faster and more flawlessly in production process, increasing demand for machine vision systems. Machine vision enables a higher rate of automation: Improved machine vision systems enable machines to take a higher share of the industrial work. As work is automated (e.g. production control work), employees can be directed to more productive areas. Some examples of automation include:

  • Fast and high-quality production control: Defective parts can be identified quickly thanks to the rapid processing capability of the machine vision. At the same time, the possibility of error is reduced by eliminating human error.
  • Inventory control: Thanks to machine vision systems such as barcode scanners, products can be quickly and individually controlled during storage and distribution.
  • Predictive maintenance: Visual data can be used to trigger predictive maintenance systems. However, these systems rely more on sensors such as heat and vibration detectors.

What are machine vision use cases/applications areas?

  • Across industries: As mentioned above, production quality control and predictive maintenance are some common application areas in all industry.
  • Retail: Barcode scanners are important part of inventory and store management in retail industry and it is one of the main applications of machine vision. Automatic checkout systems and customer service applications are the other examples of machine vision used in retail industry.
  • Healthcare: Ultrasound scanning, surgical navigation and skin cancer detection are some of the examples of machine vision in healthcare industry.
  • Logistics: Automated Data Capture (ADC) or Automated Inspection (AI) are important processes in logistics for verification and control of the product. These terms refers to  automatically identifying objects, collecting data about them, and entering them directly into computer systems. QR codes, barcodes and RFIDs are some of the examples of ADC.
  • Automotive: Dimensional gauging is a method in production process in automotive and machine vision helps by calculating the distances between points or geometric positions on an object and determines whether these measurements meet specifications. Machine vision allows robotic guidance which is needed to place parts onto a vehicle during the body-in-white stage of the assembly process. Presence-absence checking is also assisted by machine vision solutions in automotive plants.
  • Source: Cognex

What are the things to pay attention to while choosing machine vision solutions?

In order to select the right machine vision solution, it is necessary to evaluate the machine vision stages individually.

Image capture

The purpose of the machine vision system should be well defined from the beginning. For example, lets consider a system to select very small details in a product. This system must be equipped with high pixel quality cameras with fast frame rate. On the other hand, if products are to be evaluated according to their temperatures, an infrared camera must be used at that point. In short, the right equipment will depend on the use case.

Image processing/recognition

It is important to choose the correct image processing or image recognition software and to integrate this software to the system used in image capture.

Image processing software will run on an hardware which will determine the image processing speed. The necessary speed will depend on the use case and optimizing for the right speed would optimize hardware costs.

System action

The software that enables image processing and analysis must be well integrated with the system that takes action. Integration costs need to be considered while considering total cost of ownership of the machine vision system.

What are Machine Vision companies?
