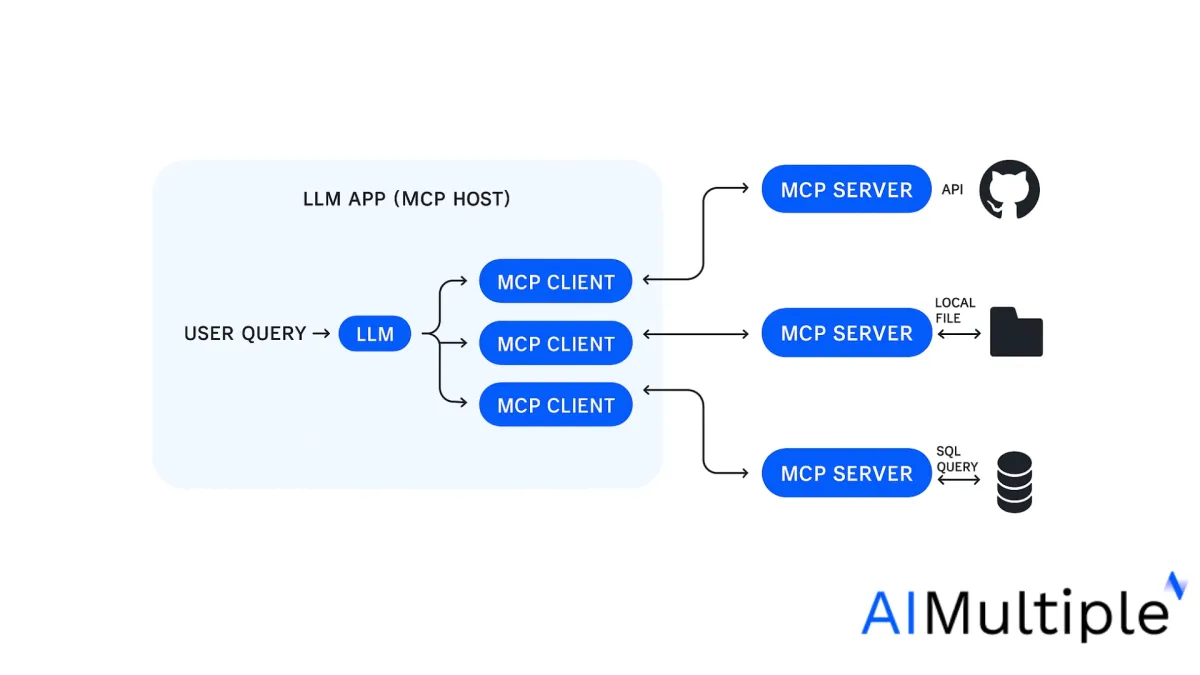

Figma has announced the beta release of its Dev Mode MCP server, which connects design files directly to AI coding tools like Cursor, Windsurf, and Claude Code. The server uses Model Context Protocol (MCP) to provide design context to Large Language Models, enabling code generation that reflects both design specifications and existing codebase patterns.
We’ll explore how the integration works, its practical applications, and what limitations teams should consider before implementation.
Figma to code benchmark results
As a result of our benchmark testing, Figma’s Dev Mode MCP server converts design files into functional code with notable inaccuracies that require developer oversight rather than replacing human expertise.
- The generated code provides a useful starting point for development teams, reducing initial setup time while still requiring manual adjustments for production use.
- Our testing with Cursor IDE demonstrated the successful conversion of homepage layouts and dashboard interfaces into
- React applications, with all implementations needing additional developer work to achieve final specifications.
Figma Dev Mode MCP Server
Testing methodology and setup
We conducted hands-on testing of Figma’s Dev Mode MCP server using two distinct design scenarios to evaluate code generation accuracy, workflow efficiency, and practical implementation value. We focused on real-world design-to-code conversion scenarios rather than synthetic test cases.
Testing environment:
- Figma Desktop Application with Dev Mode enabled
- Cursor as the primary coding interface
- Two distinct design files: homepage layout and dashboard interface
- Output frameworks: Tailwind CSS and React configurations
Evaluation criteria:
- Structural accuracy: How well the generated code reflects design layout and component hierarchy
- Styling precision: Accuracy of spacing, colors, typography, and responsive behavior
- Component organization: Quality of code structure and modularity
- Time efficiency: Speed of setup and initial code generation
- Developer refinement required: The amount of manual adjustment needed for production readiness
Test case 1: Homepage layout conversion
Design complexity assessment
We selected our AIMultiple homepage design for the initial test case, featuring:
- Multi-section layout with navbar, hero section, feature cards, and newsletter signup
- Responsive grid systems and component hierarchies
- Mixed content types, including text, icons, and call-to-action elements
- Established design token usage for consistent styling

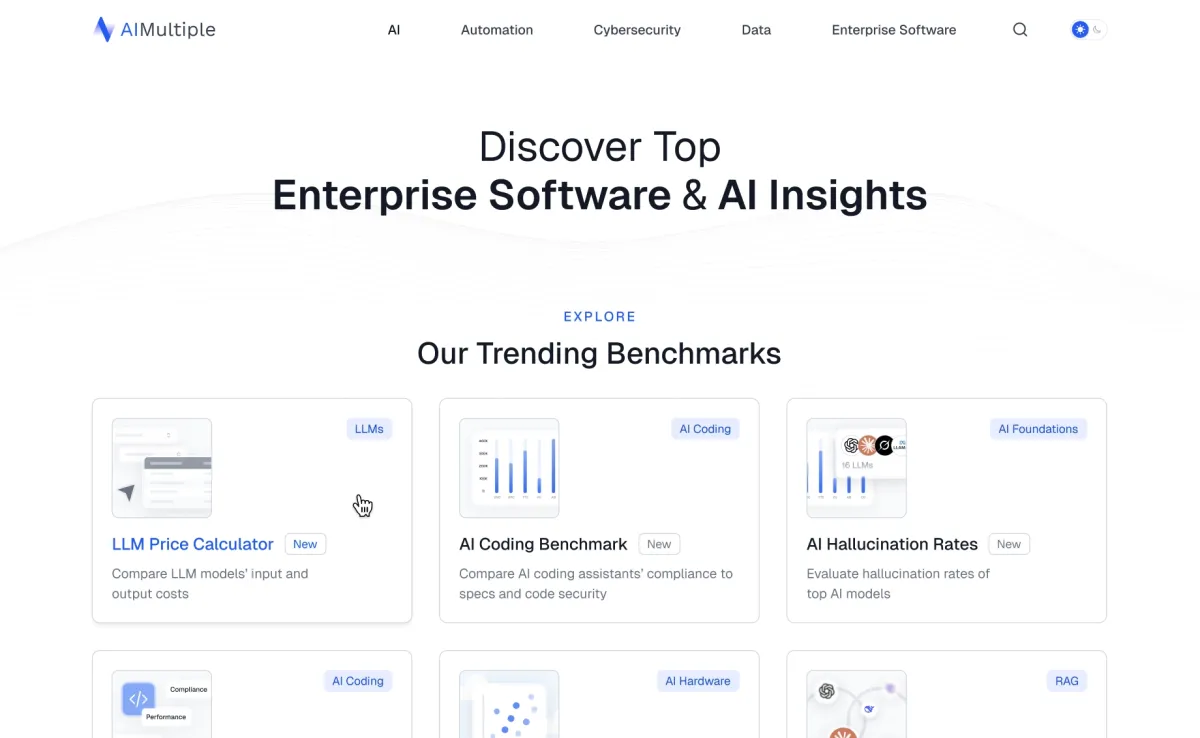

Our input:

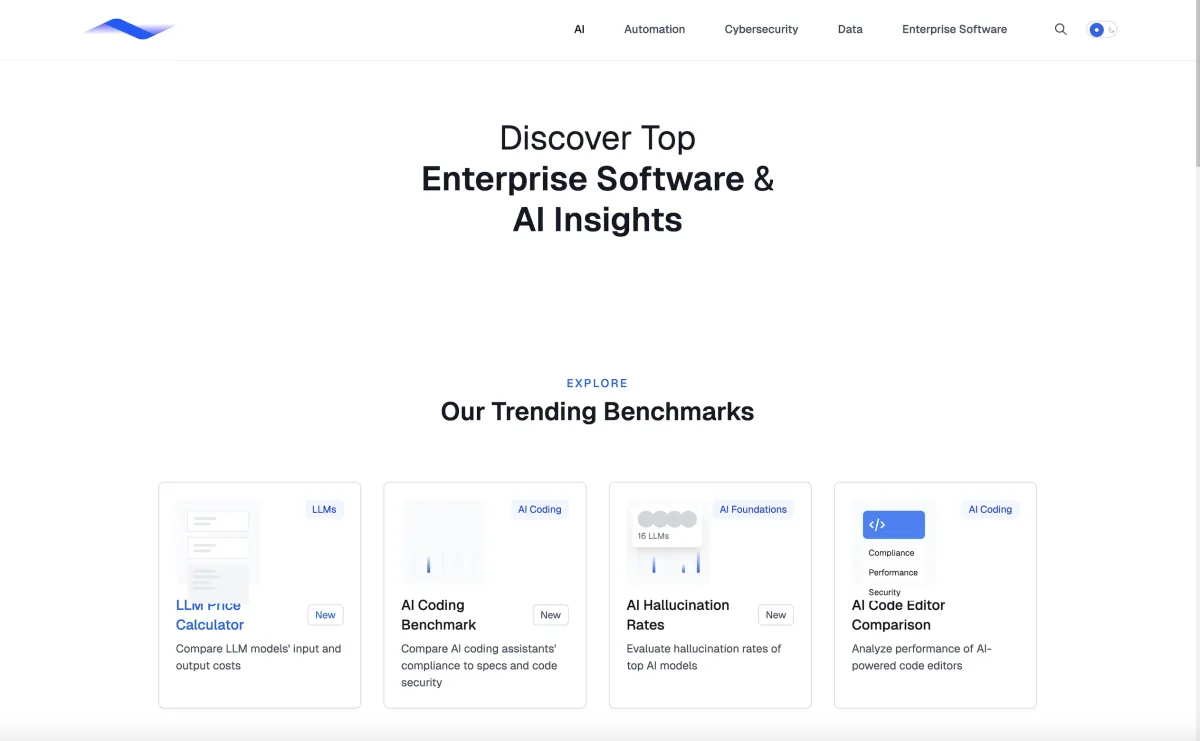

Output of the Figma MCP and Cursor:
On this page, although the production largely reflects the original visual style, some discrepancies, such as the stretched logo and inconsistent number of boxes, are noticeable.
Code generation results
We requested full page generation using Tailwind CSS framework. The AI assistant produced the structure with the following characteristics:
Structural accuracy: The generated code successfully scaffolded the entire layout with appropriate div hierarchy and semantic HTML structure. Section organization matched the original design intent, with proper nesting of components and logical content flow.
Styling precision: Color schemes, typography scales, and basic spacing translated accurately from design tokens; however, some padding and margin values required adjustment for pixel-perfect alignment. Responsive behavior was implemented correctly for major breakpoints.
Component modularity: The generated code demonstrated good separation of concerns, with distinct sections that could easily be extracted into reusable components. Navigation, feature cards, and form elements were isolated correctly within the structure.
Test case 2: Dashboard interface implementation
Advanced design complexity
Our second test involved a more complex dashboard interface design featuring:
- Multi-tab navigation system with state management requirements
- Data visualization components, including charts and metric cards
- Interactive elements requiring functional JavaScript implementation
- Dark theme with sophisticated color schemes and gradients
React project generation
For this test, we requested functional React components rather than static HTML. The MCP server needed to understand not just visual design but also component interaction patterns and state management requirements.

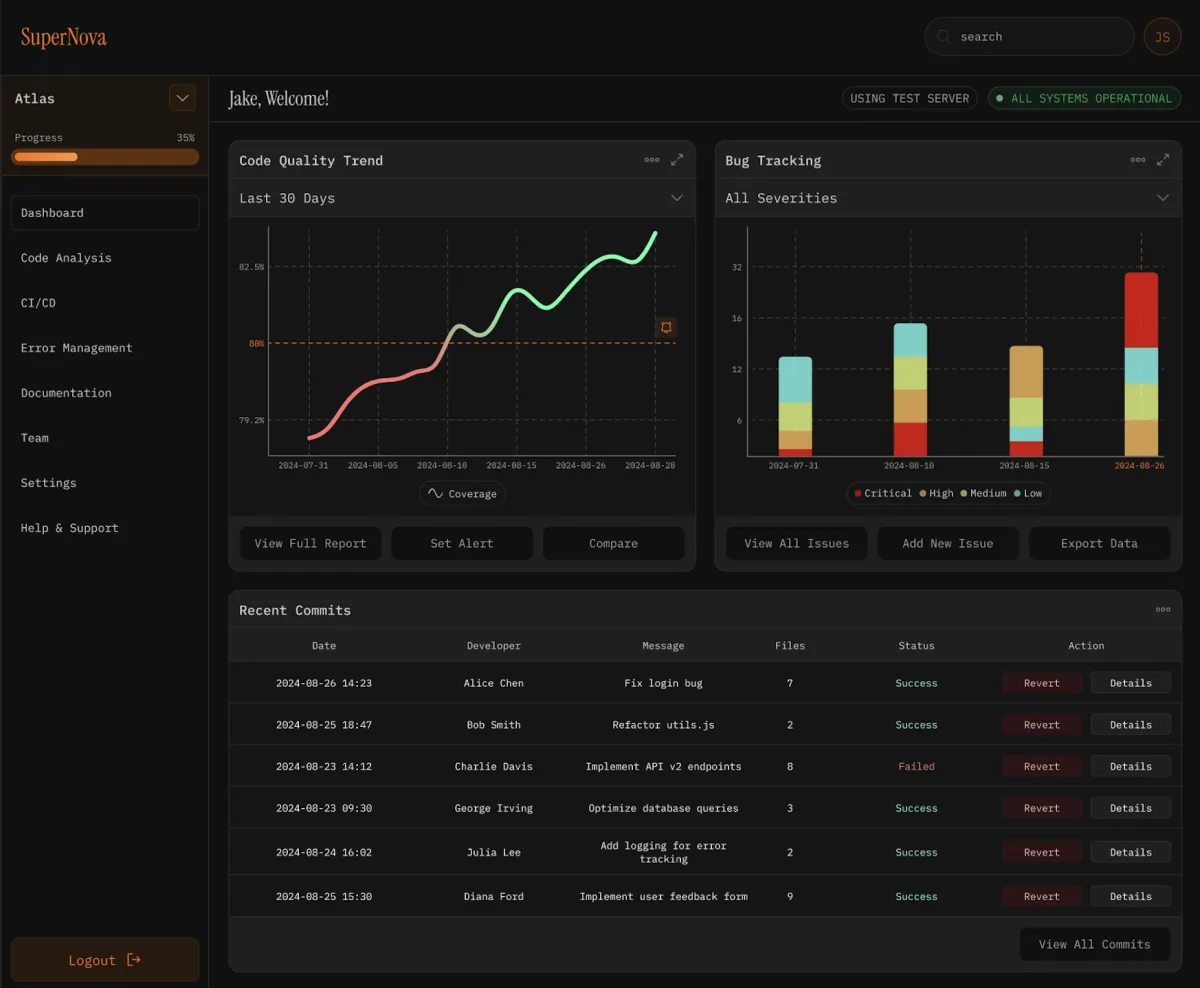

The input:

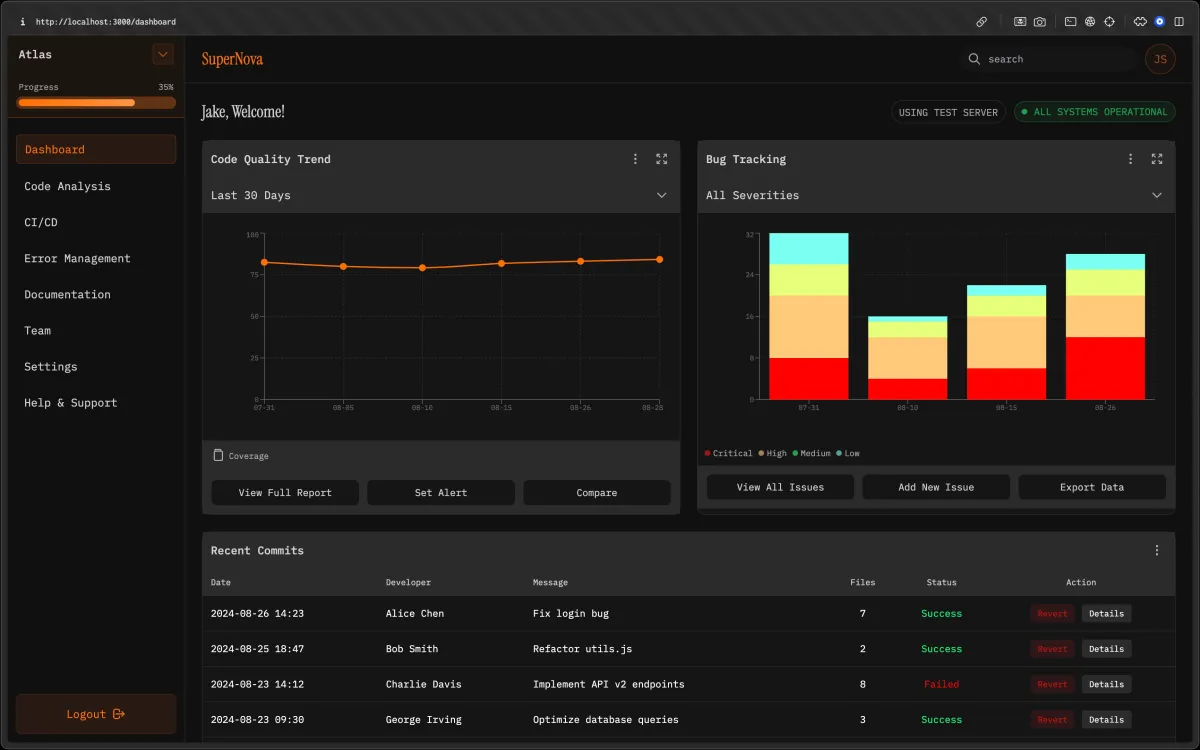

Output of the MCP:
This implementation is more successful than the first one, but there are discrepancies in the border radius and colors.
Advanced code generation assessment
Framework integration: The AI assistant correctly identified the need for React functional components and generated an appropriate project structure, including proper import statements, component hierarchy, and modern React patterns.
Interactive component handling: Tab navigation was implemented with basic state management, though more sophisticated interactions required developer enhancement. The generated foundation provided a correct component structure.
Data visualization integration: Chart components were created with proper placeholder structure, but integration with actual data sources and chart libraries required significant developer input. The visual layout and positioning were mostly accurate.
Styling System Implementation: Theme implementation was largely successful, with proper CSS custom properties and Tailwind dark mode utilities. Color schemes and spacing are similar to design specifications, but minor adjustments are needed.
MCP server configuration and extraction

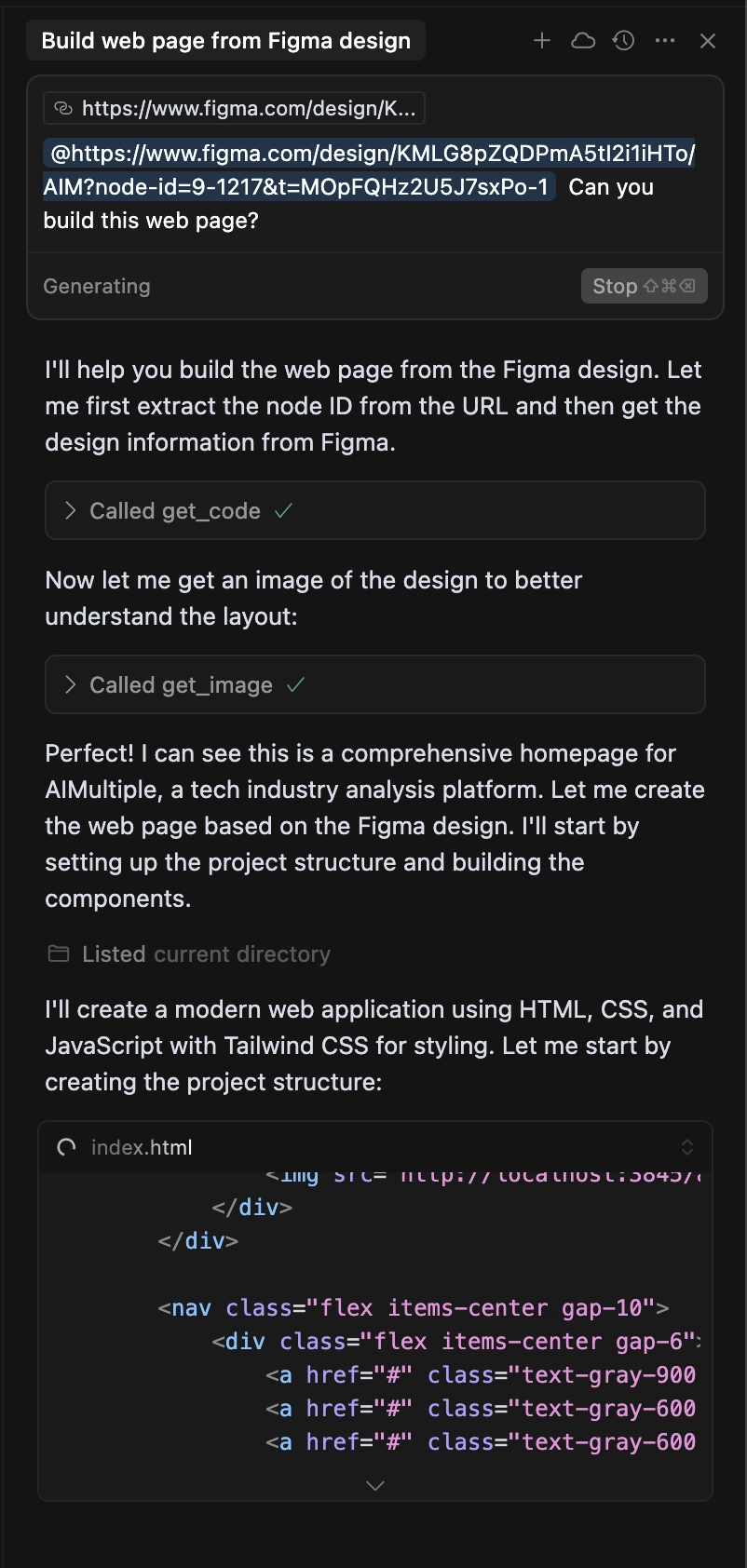

After enabling Dev Mode within the project file, we connected to the MCP server and input the specific Figma node ID for analysis. The system identified the design structure and extracted both layout information and component relationships.
Limitations and realistic expectations
What does Figma MCP do well?
- Structural layout conversion
- Design token and styling system implementation
- Component hierarchy and organization
- Responsive framework setup and basic breakpoint handling
- Integration with established design systems and component libraries
Areas requiring developer expertise
- Pixel-perfect implementations
- Business logic implementation and state management
- API integration and data handling
- Performance optimization and accessibility implementation
- Advanced animations and micro-interactions
- Production deployment and testing considerations
Recommendations for implementation
Optimal use cases
Teams will see maximum benefit from Figma MCP integration when:
- Established design systems with Code Connect mappings exist
- Developers are comfortable with AI-assisted coding workflows
- Projects involve significant UI development with moderate complexity
- Time pressure requires rapid prototyping and implementation acceleration
Implementation strategy
- Phase 1: Use MCP for rapid prototyping and design validation
- Phase 2: Leverage generated code as a foundation for production development
- Phase 3: Implement business logic and advanced functionality manually
- Phase 4: Refine and optimize based on performance and accessibility requirements
Core MCP tools
1. Code Context Tool
Code context tool extracts component and styling information from selected Figma elements, providing structured data about design patterns. The tool can return different formats based on configuration settings, including React component structures with Tailwind CSS classes or framework-agnostic styling information.
Code Connect integrations enhance this tool by providing direct mappings between Figma components and existing codebase implementations, ensuring generated code aligns with established patterns rather than creating duplicate components.
2. Image Context Tool
The image tool provides visual context through strategic screenshots of design elements. Rather than generic screen captures, this tool generates contextually relevant images based on the type of information requested: high-level layouts for structural understanding or detailed component views for implementation specifics.
3. Variable Definition Tool
This tool extracts design token and variable information from Figma files, providing exact variable names and values to AI coding tools. When teams have established code syntax for variables in Figma, the tool can provide the specific code implementation rather than just variable references.
Practical implementation: Cursor IDE integration
A typical workflow using Cursor IDE demonstrates the practical application of the MCP server:
- Design Selection: A developer selects a component or section in an open Figma file. The MCP server recognizes this selection and prepares contextual information.
- Code Generation Request: Within Cursor, the developer requests code generation for the selected design element. The AI assistant automatically queries the Figma MCP server for relevant context.
- Context Integration: The MCP server provides component references, styling variables, and visual context to the AI tool. This information supplements the AI’s understanding of the existing codebase patterns.
- Code Output: The cursor generates React code that incorporates the correct component imports, utilizes established design tokens, and adheres to existing architectural patterns. The output reflects both the design specifications and the team’s coding conventions.
- Iterative Refinement: Developers can request modifications or ask for different representations (e.g., mobile-responsive, different frameworks) while maintaining design system alignment.
Return on investment
For teams with appropriate workflows and design system maturity, the MCP server can reduce initial development time by 50-70% while maintaining code quality standards. The investment in setup and workflow adjustment typically pays off within 2-3 major feature implementations.
The Figma Dev Mode MCP server represents a significant advancement in design-to-code automation, providing practical value for teams ready to integrate AI assistance into their development workflows. While it doesn’t eliminate the need for skilled developers, it successfully accelerates the initial implementation phases and improves consistency between design intent and code output.
