Azure Scheduler in 2024: Future Outlook & 7 Use Cases

In modern computing, efficiency and automation are crucial determinants of successful system management. One of the most fundamental aspects of this is task scheduling, a process that, when done effectively, can drive significant improvements in system productivity and reliability. Workload automation tools are the cornerstone of achieving proper task scheduling. Azure Scheduler is a cloud-based service from Microsoft designed to run simple or complex jobs on an easy-to-use and flexible platform.

This article will delve deep into Azure Scheduler, exploring its features, capabilities, drawbacks, and how you can leverage it to optimize your tasks and operations. Additionally, we’ll look at real-world applications and their replacement with Azure Logic Apps.

What is Azure Scheduler?

Azure Scheduler is a cloud-based job scheduling service that enables you to run jobs—such as calling HTTP/S endpoints or posting messages to Azure Storage queues—on any schedule, from microseconds to monthly. It’s a simple but efficient tool that handles the scheduling and coordination of tasks, making it easier for businesses to focus on their core business activities.

Users can schedule jobs to run at specific times, set them to run periodically or have them run on demand. This is all handled in the cloud, so server maintenance or uptime is not a concern.

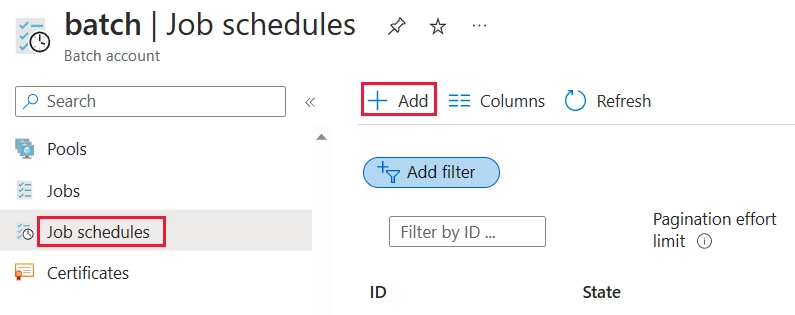

Azure scheduler has a simple user interface where users can add batch and job schedules. (See Figure 1)

Source: Microsoft1

Figure 1: Azure Scheduler

Key Features of Azure Scheduler

  • Multiple Job Action Types: Azure Scheduler supports several job actions, such as HTTP/S, Storage Queues, Service Bus Queues, and Service Bus Topics.
  • Rich Scheduling Abilities: You can set jobs to recur at specific intervals, ranging from minutes to months, and specify the start time, end time, and time zone for each job.
  • Fault Tolerance: Azure Scheduler is designed to be fault-tolerant. A job will automatically retry according to your set policy if it fails.
  • Observability: Azure Scheduler provides job history that includes the outcome of the job, the time it took to run, and any error messages, helping you understand your jobs better and troubleshoot any issues.

You can refer to our article(s) for a comprehensive outlook on Top Azure Scheduler alternatives if you’re in search of an alternative to Azure Scheduler.

How Does Azure Scheduler Work?

Azure Scheduler uses three primary components: job collections, jobs, and actions.

  • Job Collections: These are groups of jobs. Each job collection has a set of quotas and a unique namespace.
  • Jobs: These are the tasks you want to run. They can be anything from HTTP/S calls to message posting on Azure Storage queues or Service Bus topics.
  • Actions: These define what happens when a job is run. Actions can include HTTP/S requests, sending a message to an Azure Storage queue, or a Service Bus topic.

Azure Scheduler’s integration with other Azure services

Azure Scheduler is designed to work seamlessly with various other services within the Microsoft Azure ecosystem.

  • Azure Functions and Logic Apps: Azure Scheduler can trigger Azure Functions and Logic Apps at specified intervals. This is a powerful tool when you need to perform tasks that involve complex workflows, data manipulation, or interactions with other Azure services.
  • Azure Service Bus: Azure Scheduler can send messages to an Azure Service Bus Queue or Topic at defined intervals. This allows you to build sophisticated messaging workflows and decouple different components of your application.
  • Azure Storage: You can configure Azure Scheduler to move or manipulate data stored in Azure Storage automatically at specified intervals. This can be useful for tasks like automated backups or data archiving.
  • Azure Event Hubs: Azure Scheduler can send messages to Azure Event Hubs, a big data streaming platform and event ingestion service. This can be useful in real-time analytics scenarios or when you need to collect data from multiple sources and process it simultaneously.
  • Azure Runbooks: Azure Scheduler can start Azure Runbooks (part of Azure Automation) on a schedule. This enables you to automate management tasks based on a predefined schedule, like scaling resources or managing virtual machines.
  • Azure Batch: In scenarios where large-scale parallel and high-performance computing is required, Azure Scheduler can trigger Azure Batch jobs. This allows for efficient scheduling and computation of large volumes of data.
  • Azure API Management: Azure Scheduler can make HTTP or HTTPS requests to any HTTP endpoint. This means it can trigger any API that Azure API Management manages regularly. You can read our article on API management to understand its importance, benefits and top use cases.

Top 7 Azure Scheduler Use Cases

1-Regular Data Collection and Analysis

Azure Scheduler can be used to automate data collection at regular intervals. This can be particularly useful for organizations that need to analyze fresh data frequently, such as stock prices or social media sentiment.

2. Automating Maintenance Tasks

Routine maintenance tasks like database cleanups, log rotations, or system health checks can be scheduled to run automatically, reducing the need for manual intervention.

3. Job Chaining

Azure Scheduler can orchestrate the execution of complex workflows where tasks need to be executed in a particular sequence. For example, an ETL (Extract, Transform, Load) workflow can be automated where data is first extracted from a source, transformed or cleaned, and then loaded into a database.

4. Sending Recurring Emails or Notifications

If you need to send out recurring emails or notifications, such as weekly reports or daily reminders, Azure Scheduler can handle this automatically.

5. Invoking Azure Functions or Logic Apps

Azure Scheduler can trigger Azure Functions or Logic Apps at specific times. This is useful when these services need to run on a schedule, like running a function every night to back up data.

6. Testing

Azure Scheduler can help in load testing or stress testing by generating a high volume of requests to an application at a specific time. Azure Scheduler can also be used to automatically perform health checks on applications or services and alert administrators if a service is down.

7. Microservices Coordination

In a microservices architecture, Azure Scheduler can coordinate and trigger actions across different services.

Azure Scheduler vs. Azure Logic Apps

While Azure Scheduler is a powerful tool, it’s important to note that Microsoft has recommended Azure Logic Apps as the preferred way to schedule and run tasks in the cloud since the Scheduler service was retired in 2019. Azure Logic Apps provides similar functionality to Azure Scheduler but adds additional features, including a visual designer, connectors to various services, and built-in support for tracking, alerting, and logging.

Although Azure Scheduler has been retired, Azure Logic Apps has replaced it, and it offers more extensive functionality and integration options. Whether you’re still using Azure Scheduler or have moved on to Azure Logic Apps, understanding the principles of job scheduling in the cloud will help you make the most of these tools and simplify your development processes.
